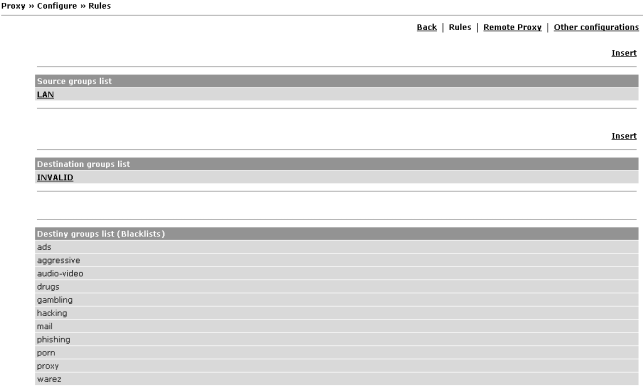

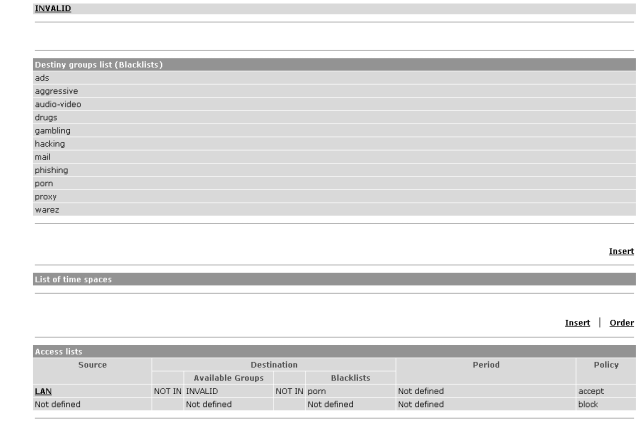

The Configurations link enables you to access the proxy rules settings. This interface (Figure 4.5) presents you with the following options:
Source groups list: Sets an origin group with access to proxy. After this group creation, the accesses can be set by: Machine group, Machine, IP Subnets, IP Machines and IP ranges.By default IPBrick has a LAN group with its own defined IP Subnet.
Destination groups list: Sets destination groups (Web servers). You can set Domains, Extensions or Words in the URL each created destination group. By default the created group is named INVALID;
Blacklists: Displays the set of blacklists that were configured at Other
configurations;
List of time spaces: Sets specific periods based on hours and week days;
Access Lists: Sets access permissions from the created origin and destination groups, as well as defined blacklists and periods. For instance, you can set that all destinations can be accessed by the LAN group, with the exception of INVALID destination group and blacklist porn, in an undefined period (always).
