Commtouch

The Commtouch Anti-Virus is already installed in the Email section. You only have to acquire a license from Commtouch to activate its management interface. After inserting the license, the interface displays the following links (Figure 3.57):

• Update: After the license expiration, you need to renew with a new license file;
• Delete: Removes the licence;
• Configure: Provides a general configuration of notifications;
• Groups Management: Provides personalization of Commtouch Antivirus configuration and filtering;
• Statistics: Interface with specific statistics about the Anti-Virus use.

Figure 3.57: E-Mail - Commtouch Anti-Virus

General configurations

Click on Modify to configure the notifications email address (Figure 3.58).

General Settings:

• Notify from address: Sender will make the notifications;
• Notify to address: Email address that will receive notifications.

Limits:

• Do not send notification to: Address that won't be able to receive notifications (the notification sender).

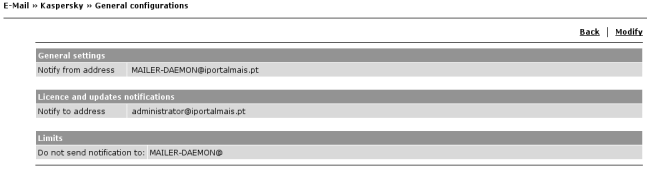

Figure 3.58: E-Mail - Commtouch Anti-Virus - General Configurations

Groups Management

The group default is already created. If you click on the group, the default general settings are displayed. If you click on Modify, you can personalize the following options (Figure 3.59):

• Enable: Commtouch Anti-Virus State;
• Group administrator address: Group administrator email;
• Quarantine path: The files in the quarantine state are stored in this directories;
• Sender mask: You may add this item if a new group is created;
• Recipient mask: You may add this item if a new group is created;

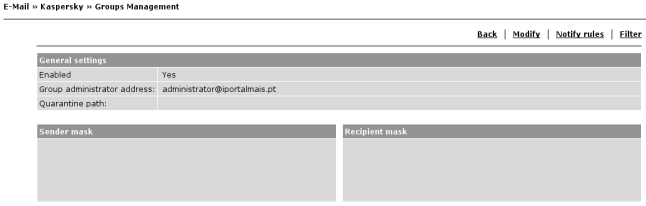

Figure 3.59: E-Mail - Commtouch Anti-Virus - Groups Management

The notification rules for any type of object can be changed in Notification Rules menu, as you can see in Figure 3.60.

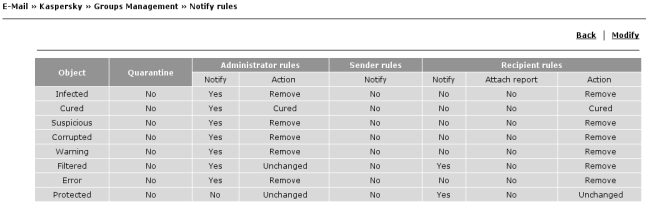

Figure 3.60: E-Mail - Commtouch Anti-Virus - Notification Rules

In the Filter menu (Figure 3.61), you may set the filter rules/exceptions by the name of the files or by mime-type.

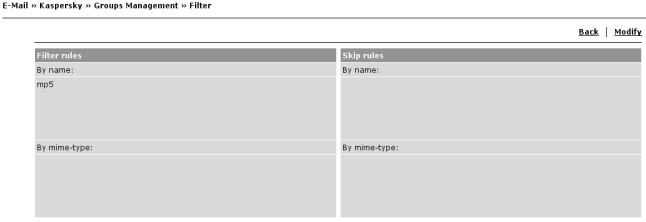

Figure 3.61: E-Mail - Commtouch Anti-Virus - Filter

Statistics

Several statistics are displayed in this interface:

• Virus Statistics in period: Options of displaying the graphic in Virus Statistics:
  • Start: The starting date for statistics;
  • View: Can be set in hours, days, months or years;
  • Repetition: Scale of the graphic horizontal axis;
  • Group: It enables you to group data, depending on the chosen view
• Virus statistics: The display can be filtered by: Infected files, protected, corrupted, errors and files where disinfection failed;
• Virus List: Can be organized by Virus name/Number of occurrences;
• List of email senders: Shows some statistics about files by sender addresses;
• List of email recipients: Shows some statistics about files by IPBrick recipients addresses;

An example can be seen at Figure 3.62 and Figure 3.63.

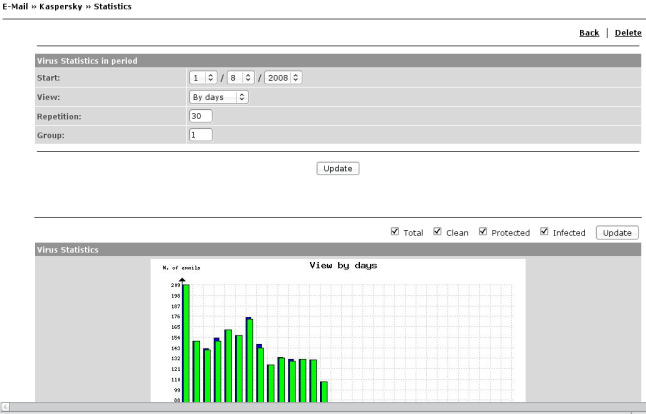

Figure 3.62: E-Mail - Commtouch Anti-Virus - Statistics 1/2

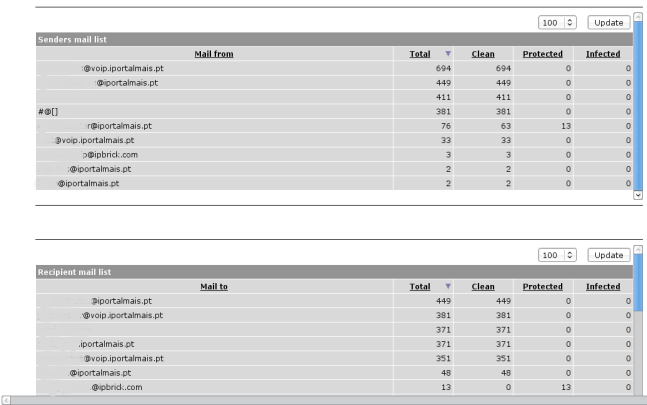

Figure 3.63: E-Mail - Commtouch Anti-Virus - Statistics 2/2
