Kaspersky

Like Kaspersky Anti-Virus, Anti-Spam is already installed, you only need to apply a license to activate this feature at the communications IPBrick. After the activation, the following options are displayed:

• Update: After the license expiration, you need to renew with a new license file;
• Delete: Removes the licence;
• Configure: Provides a general configuration of notifications;
• Statistics: Interface with specific statistics about the Anti-Spam use.

The most important Anti-Spam configuration features are:

• To add every email domains of the company that the Anti-Spam should filter (Figure 3.52);
• To set Kaspersky Anti-Spam detection level. Standard is the default level. If the spam reception rate is high, the level of detection should be increased (Figure 3.54);
• To redirect all the emails classified by KaspersKy Anti-Spam to a email account (At Figure 3.53: kaspersky@domain.com). This enables the network administrator to analyze all the emails classified as Spam - if there is any misclassified email, the administrator may forward this email to his recipient. In a Intranet and a Communications IPBrick topology we can use a local mailbox from the Communications IPBrick (ex: spam@com.domain.com), because all the spam must stay at the com. server;
• Email and IP addresses Whitelists and Blacklists should be added - if there is any (menu on Figure 3.52).

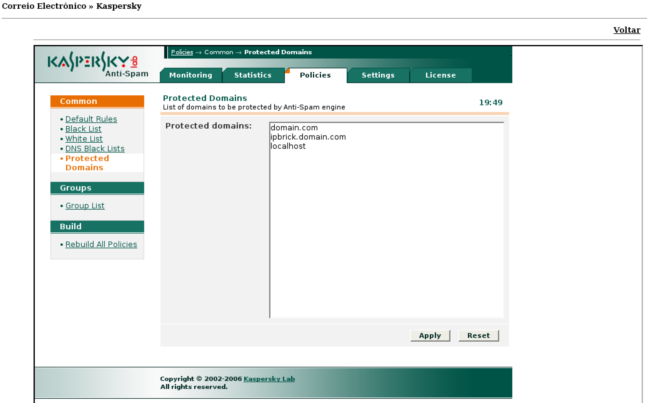

Figure 3.52: E-Mail - Kasp. Anti-Spam - Protected Domains

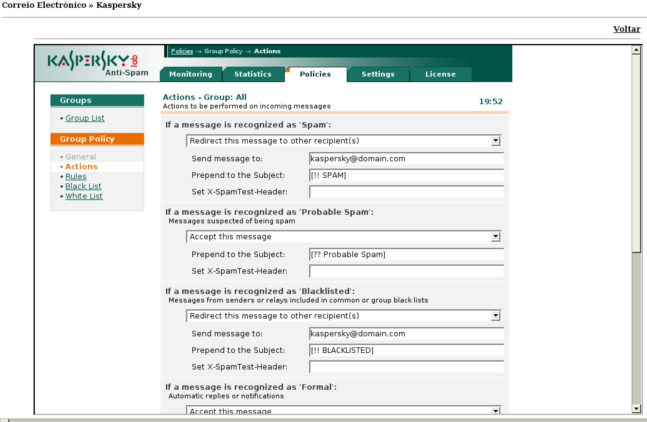

Figure 3.53: E-Mail - Kasp. Anti-Spam - Actions

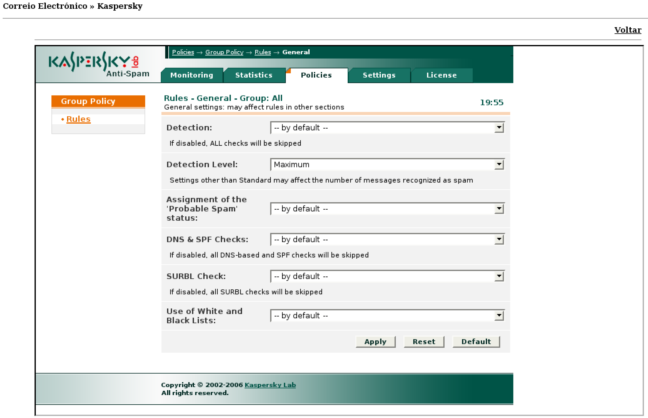

Figure 3.54: E-Mail - Kasp. Anti-Spam - Rules

Statistics

Several statistics are displayed in this interface:

• Spam Statistics in period: Options to display present graphic in Spam Statistics:
  • Start: The starting date for statistics;
  • View: Can be set in hours, days, months or years;
  • Repetition: Scale of the graphic horizontal axis;
  • Group: It enables you to group data, depending on the chosen view.
• Spam statistics: The display can be filtered by: Clean files, Spam, probable and blacklists;
• List of email recipients: Shows some statistics about files by IPBrick recipients addresses.

An example is present at Figure 3.55.

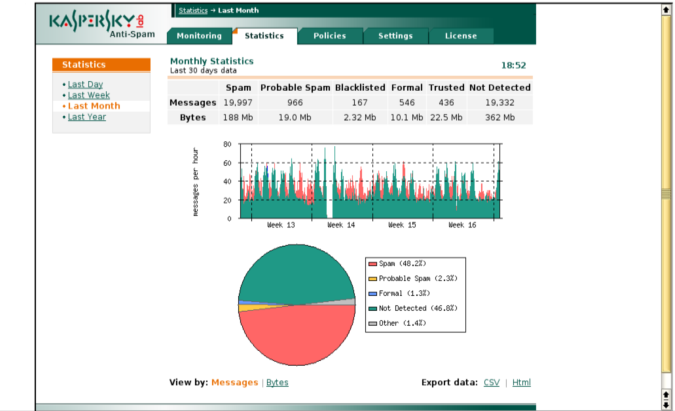

Figure 3.55: E-Mail - Kasp. Anti-Spam - Statistics
