Machines

Here you see a list of the registered machines with their MAC addresses in the DHCP service. You can register the machines in Machines Management (see section 3.2, page ) or directly in this section (Figure 7.38).

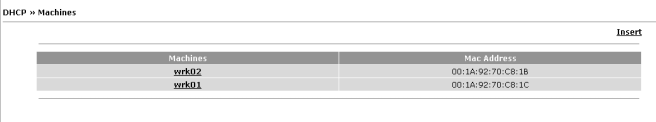

Figure 7.38: Support Services - DHCP - Machines

Mass Operations for machines

The Export feature will export all the data to a .csv file. The Mass operations option permit an import of a .csv file. You can edit a .csv file in a spreadsheet application, choosing the ; to split the columns. When doing a export we can see all the fields present:

• action: Options available:
  • I: To insert a machine in DHCP;
  • U: To update a machine in DHCP;
  • D: To delete a machine in DHCP;
• iddhcpmachine: DHCP machine identifier;
• name: Machine name;
• ip: Machine IP address;
• mac: Machine NIC's MAC address;

Example of a .cvs file content for mass operations import option:

      action;iddhcpmachine;name;ip;mac
      N;1;maq1;172.29.1.66;AA:55:43:4A:AA:A1
      I;2;maq1;172.29.1.67;AA:55:43:4A:AA:A2
      I;3;maq1;172.29.1.68;AA:55:43:4A:AA:A3
